■ Fine ceramic firing and other product sintering at temperatures up to 1730°C.
1. Model: RQ-18 series
2. Loading dimensions: Approximately 4m³
3. Furnace atmosphere: air atmosphere
4. Sintering temperature: 1730℃.

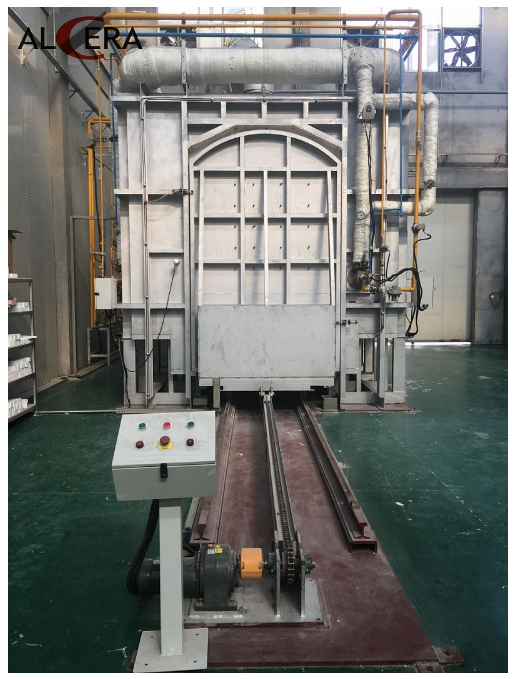

1. Front-opening push-type furnace door, driven by a motor;
2. The furnace is heated by four natural gas burners, and the flue gas is secondary combusted by one natural gas burner.
3. Employs type B thermocouples for multi-zone temperature control;

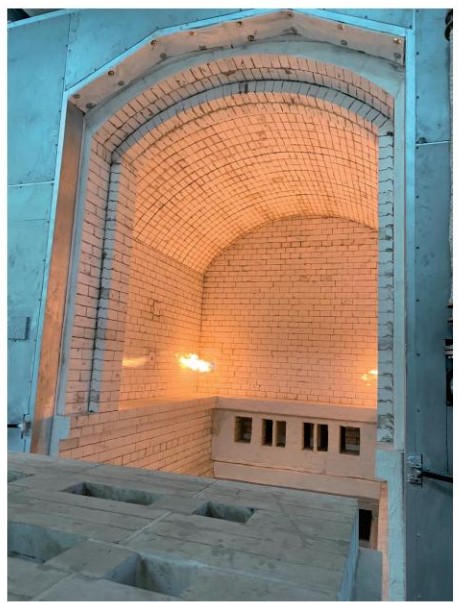

4. The insulation material uses refractory bricks produced in-house, with a multi-layer design to reduce heat loss and improve heating efficiency;
5. Touchscreen control;
6. Through heat exchange, some of the heat energy emitted directly into the atmosphere can be converted into heat for combustion air, thus saving energy and reducing emissions.
