■ Used for debinding and sintering of copper-based conductor LTCC ceramic-cased circuit boards, circuit modules, etc.

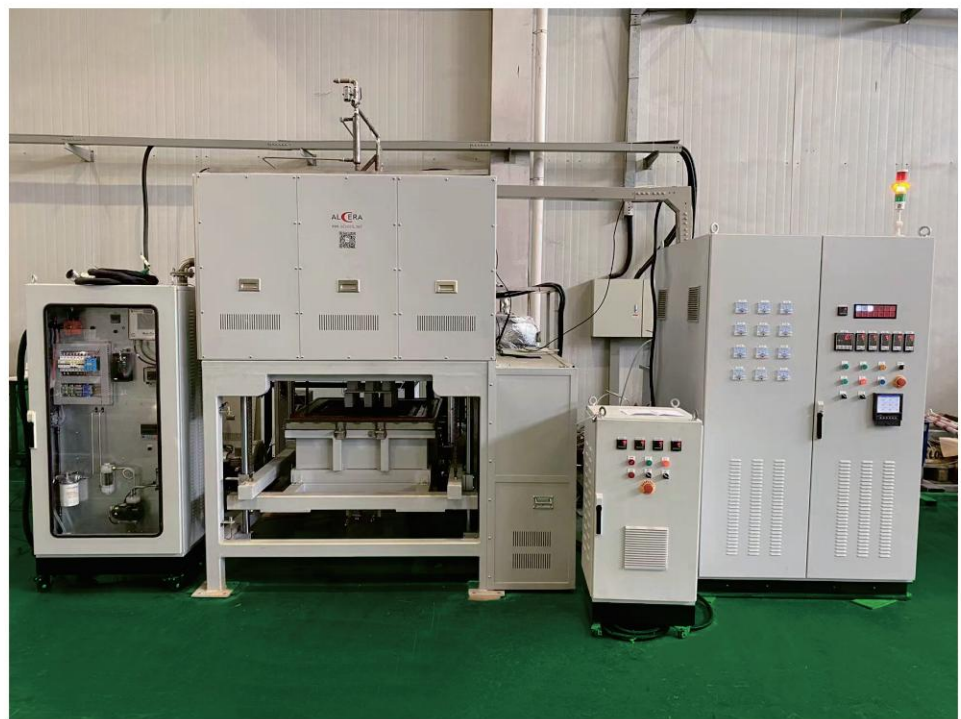

1. Model: RB-12 Atmosphere Type Series;
2. Loading dimensions: 300(L)×300(W)×300(H);
3. Furnace atmosphere: Nitrogen atmosphere;
4. Sintering temperature: 900℃.
1. Trolley-type lifting mechanism, double-layer furnace body design;
2. The furnace is heated from six sides, and the heating elements are resistance bands;
3. Employs type K thermocouples for multi-zone temperature control;
4. The insulation material uses fiber blocks produced in-house, with a multi-layer design to reduce heat loss and improve heating efficiency;
5. Touchscreen control, fully automatic operation;
6. Equipped with a gas humidification device;
7. The oxygen content inside the furnace is less than 10 ppm;
8. Suitable for small-batch production or R&D experiments.
