■ For gases containing organic binders
Odorless and smokeless purification treatment.
1.1. Model: RX-08 series;
2. Processing capacity: 15kW, approximately 50m³/h
30kW, approximately 150m³/h;
3. Furnace atmosphere: air atmosphere;
Sintering temperature: 800℃.

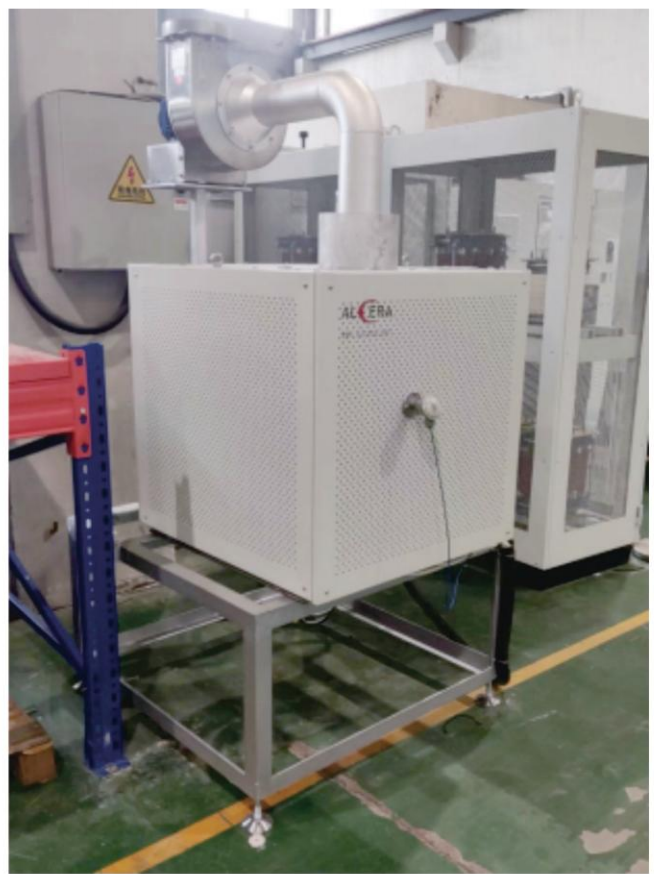

1. Box-type structure
2. The heating element uses an electric heating wire.
3. Type K thermocouples are used for temperature control.
4. The insulation material uses fiberboard produced in-house, with a multi-layer design to reduce heat loss and improve heating efficiency.
5. Temperature control by temperature controller
6. Organic matter generated in the sintering furnace is forcibly extracted by an induced draft fan and then subjected to secondary incineration.
7. Connect to customer equipment or exhaust gas pipeline.
