Technical parameters
Rated voltage: AC 440 V ± 10% 3-phase 60 Hz ± 5%
Rated capacity: 16.4 T
Maximum temperature: 500℃

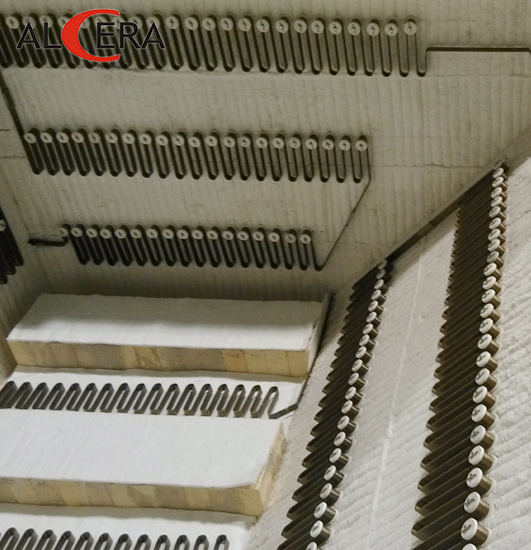

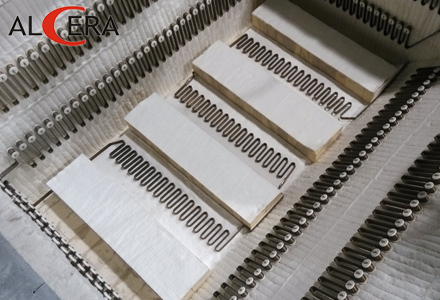

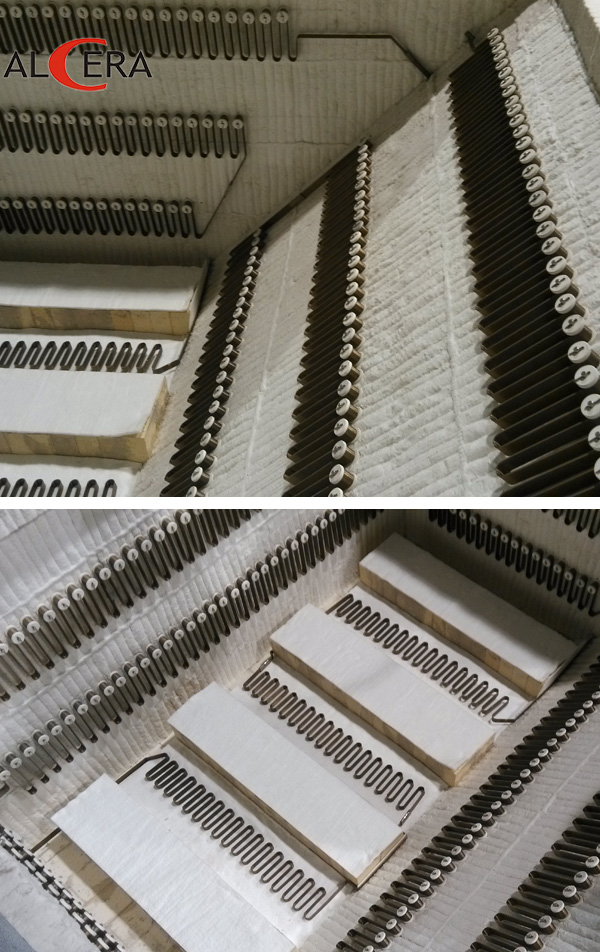

Heating element: KANTHAL AF
Rated power: 180 kW
Connection type: Y-type
Heating locations: 4 sides and bottom
Control method: PID control

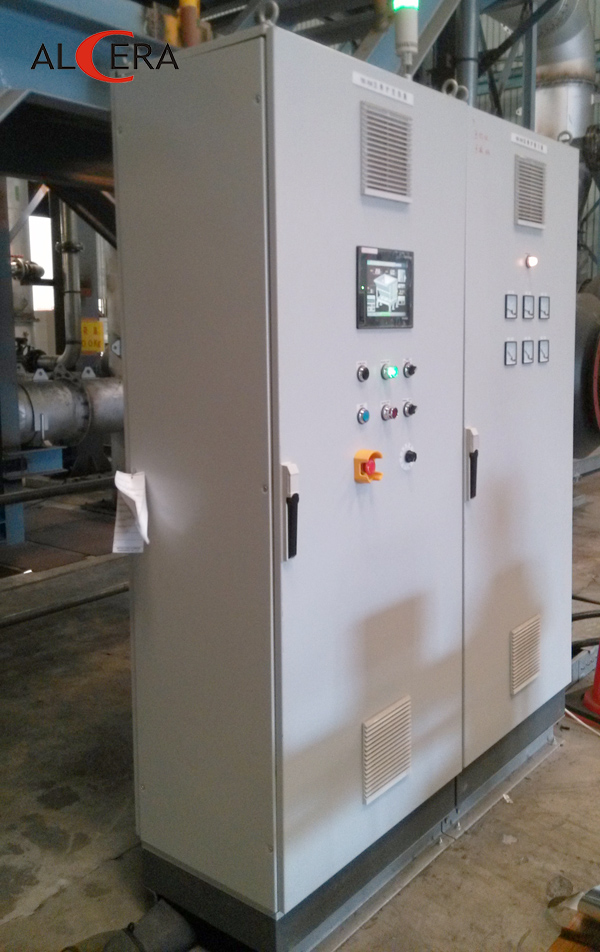

Operation method: Touch screen
Insulation materials: Sides: CF modules + nano panels; Bottom: Refractory bricks
Safety protection: overheating, short circuit, leakage

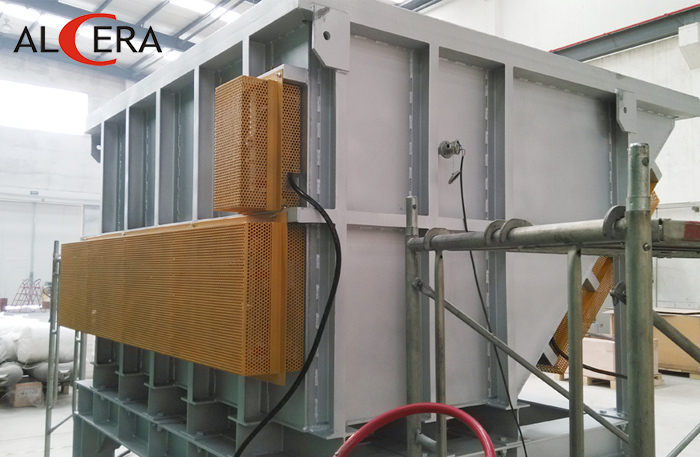

Overview of Alme’s Zinc Melting Furnace
The molten zinc heating furnace is a key piece of equipment in a small steel strip galvanizing production line. The safety, reliability, and stability of the equipment will seriously affect the quality and capacity of the galvanized coils.
