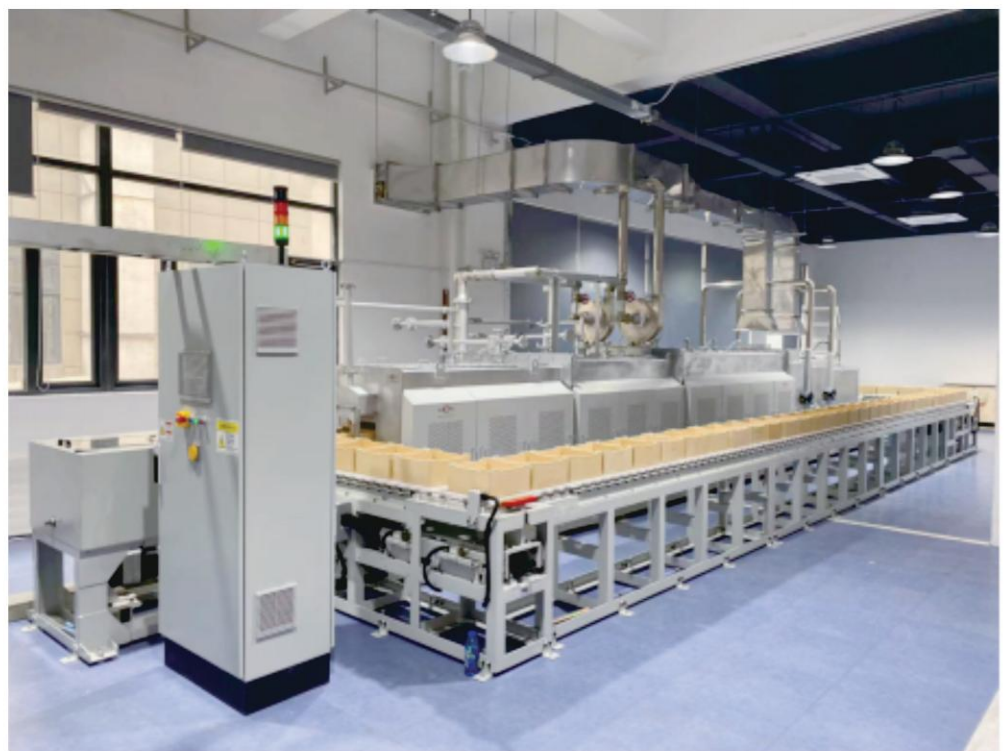

■ Continuous production equipment, suitable for debinding and sintering of various ceramic powders, electronic components, ceramic substrates, etc.
1. Model: SJP-10;
2. Push plate dimensions: 340*340*30, 74 pieces;
3. Stacking dimensions: 320*320*180 (H), on the push plate;
4. Furnace atmosphere: air atmosphere;
5. Sintering temperature: 1350℃.
1. The furnace body consists of preheating, heating, heat preservation, cooling, and rotation mechanisms;
2. The heating element uses a heating wire and a silicon carbide rod;
3. The insulation material uses refractory bricks produced in-house, with a multi-layer design to reduce heat loss and improve heating efficiency;
4. Employs K-type and R-type thermocouples for multi-zone temperature control;
5. Touchscreen control, fully automatic heating and operation;
6. The propulsion speed can be set by the user.
