■ Sintering of precious metals, glass products, etc., at 1600℃.
1. Model: SX-18 Special Edition Series;
2. Loading dimensions: 250(D)×250(W)×250(H);
3. Furnace atmosphere: air atmosphere;
4. Sintering temperature: 1600℃.

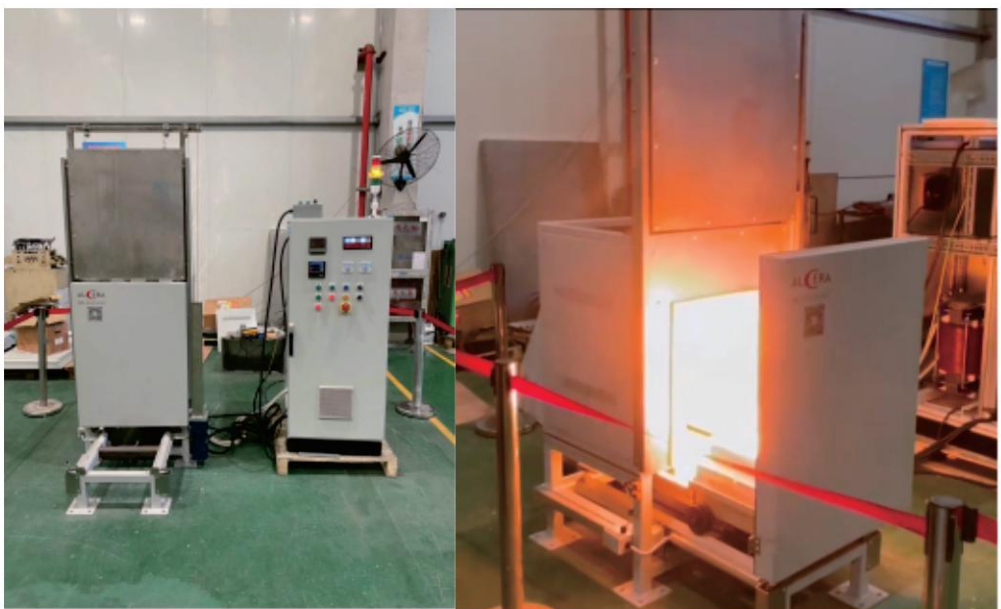

1. Front-opening push-type furnace door, double-layer furnace body design;
2. The furnace chamber is heated from both sides, and the heating element is a U-shaped silicon molybdenum rod;
3. Type B thermocouples are used for temperature control;
4. The insulation material uses environmentally friendly, high-quality imported Japanese raw materials. Our company independently produces fiberboard and modules in a multi-layer design to reduce heat loss and improve heating efficiency.
5. Temperature is controlled by a temperature controller, and no paper recorder is used for recording;
6. At high temperatures, the furnace door can be opened to remove the molten product for the next process; simultaneously, the raw materials can remain in the furnace for sintering. Suitable for research on precious metals and glass products.
